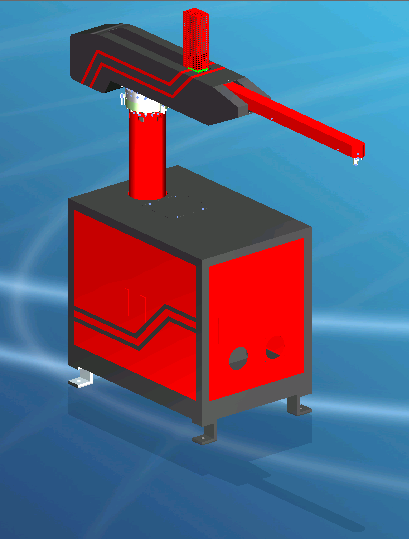

Stamping manipulator is based on the automation equipment, according to the characteristics of stamping production, specifically for the realization of stamping automation unmanned production and research and development of equipment. Can replace the artificial stamping station in the material stamping, handling, loading and unloading work, the entire production line efficiency of 5 seconds. The automation equipment for the stamping and other repetitive, dangerous, high-processing industry, in saving labor costs, improve labor and equipment safety, product quality, quality, process stability and other aspects of modern industrialization "pioneering and innovative" Important spirit embodied.

Flexible stamping automatic line mostly by a double dynamic stretching press or multi-link single-action tensile presses and 4 to 5 single-action presses composed of lines, the production of large body panels, high security, good quality stamping. Automatic placement and feeding system on the production line.

Structural data

The machine is composed of a palletizing machine, a cleaning machine, a medium feeding machine, a loading and unloading robot arm (robot), a shuttle (flip) conveying automatic conveyor, from the blank feeding to the stamping parts. Production rhythm up to 6 ~ 9 times / min. The whole stamping line length of 60 ~ 80 meters, about 6 ~ 7 operating workers. Some use of the international advanced high-speed compact press line, can quickly improve the production efficiency of the press. The sheet metal is positioned in today's advanced optical camera system. Tensile presses use CNC hydraulic stretching pads. Each advanced automation unit is equipped with a mechanical arm, eliminating the need for shuttle conveyors, shortening the conveying distance, reducing the pitch of the presses, and producing up to 10 pieces per minute.
